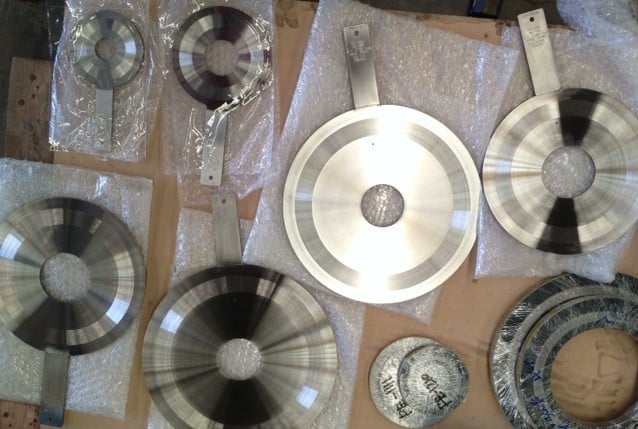

ORIFICE PLATE SHELL STANDARD

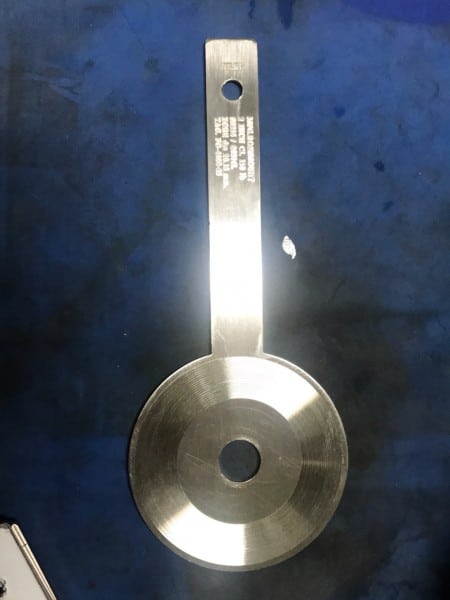

SQUARE EDGE METERING ORIFICE PLATE FOR ASME B16.36 RAISED FACE
FOR ORIFICE FLANGE
– Material: STS304, STS316, Inconel, Monel, Hastelloy, Teflon
– Mounting flange: class 150#,300#, 600#, 900#,1500#,2500#
– Size: 2B – 92B (50A – 2300A) Pipe & Duct
– Regulation : ISO5167(2003),ASME 3M(2004), ANSI 2530/AGA-3
/API-Ch.14(1992), ASME3M (1983-2003),ASME PTC 19.5(2004)
– Accuracy: 1.5% (Of reading & depent on installation)
